DWI Tooling Partner Sourcing for Steel Fire Extinguisher Shell Forming
Macrodyne Presses & Automation needed a verified Chinese tooling partner to design and manufacture a complete deep drawing and wall ironing die set. Luckee identified and audited a Suzhou-based precision tooling manufacturer — verifying engineering capability, forming simulation competency, die machining precision, and the full trial tooling programme from brief to first article.
Macrodyne Presses & Automation designs and builds heavy-duty hydraulic presses for industrial forming applications across North America. For this programme, Macrodyne was contracted to supply a complete press-and-tooling solution capable of forming seamless steel shells for fire extinguisher cylinders — a product requiring a tightly controlled deep drawing and wall ironing (DWI) process to achieve the final geometry: a thin-walled, high-strength cylindrical body drawn from a flat circular steel blank.
DWI tooling is precision-intensive and highly process-dependent. The die set must coordinate blank drawing, redrawing, and multiple successive ironing passes — each reducing wall thickness while work-hardening the shell — to produce a dimensionally consistent cylinder with uniform wall thickness, smooth internal surface, and adequate structural integrity for pressurised service. For a fire extinguisher application, the finished shell must also meet U.S. Coast Guard and DOT hydrostatic test requirements.
Macrodyne engaged Luckee to identify and verify a Chinese tooling partner capable of engineering the full DWI die set from print to production-ready tooling — including credible forming simulation to validate the process before cutting steel, die machining to the tight tolerances required for consistent ironing ring clearances, and a structured first-article trial programme.
Client
Macrodyne Presses & Automation Inc. — Ontario, Canada
End Product
Seamless steel fire extinguisher cylinder shells — UL / US Coast Guard listed
Complete DWI die set — draw die, redraw die, 4× ironing ring and punch assembly, blank holder, stripper, ejector
Factory Location
Suzhou, Jiangsu — established precision tooling manufacturing base
Process Background
Forming Steel Fire Extinguisher Shells — How the Process Works
A fire extinguisher cylinder shell is not fabricated from tube or welded plate. It is formed seamlessly from a single flat steel blank through a sequence of deep drawing and wall ironing operations — a process that demands precise tooling geometry, consistent blank material, and a well-validated process design before the first production piece is attempted.
0
The Starting Blank
The process begins with a circular flat blank shear-cut from low-carbon steel coil. Blank diameter, flatness, and edge condition are all controlled inputs: an oversized or irregular blank causes flange wrinkling in the draw die; a burred edge increases die wear and can initiate wall tears. The blank observed during the audit was approximately 180mm diameter, surface ground on one face — representative of the quality standard required for stable DWI production.
1
Deep Drawing and Redrawing
The blank is first drawn into a cup shape by a draw punch and die, then redrawn to reduce diameter and increase depth — establishing the approximate diameter of the finished shell. Wall thickness at this stage remains close to the original blank thickness. The challenge is controlling blank-holder pressure to prevent flange wrinkling without tearing the wall.
2–5
Wall Ironing — Four Passes
The drawn cup passes through a series of ironing rings — precision-bored carbide rings slightly smaller in bore than the cup wall. Each pass squeezes the wall thinner, elongates the shell, and work-hardens the steel. The four-pass sequence assumed in the preliminary simulation is consistent with industry practice for fire extinguisher shells of this geometry, with each stage removing approximately 20–35% of the remaining wall thickness.
Note on simulation scope: The forming simulation was conducted by Luckee as a preliminary process validation tool — to establish feasibility, identify critical die geometry parameters, and give the tooling partner a validated process baseline to design from. Simulation assumptions (friction coefficient, blank material flow curve, ironing ring entry angles) will be refined during tooling design in collaboration with the selected partner. The four-stage ironing sequence is a design assumption, not a fixed constraint.

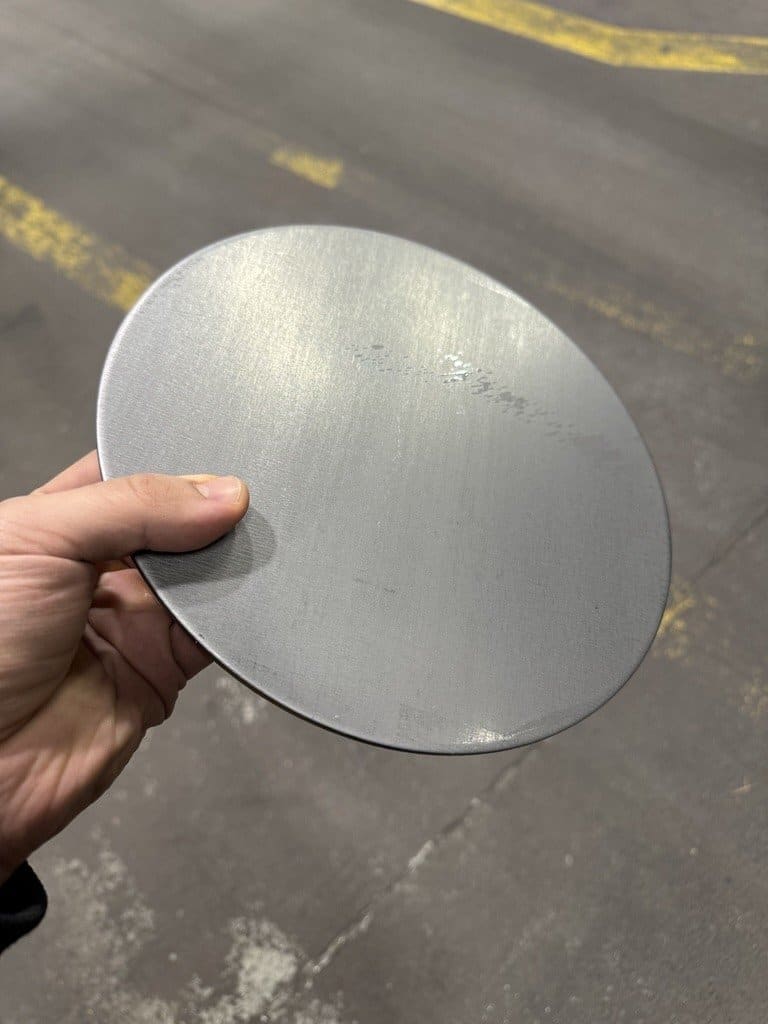

Starting Blank
Circular low-carbon steel blank — approx. 180mm diameter, surface ground face. The starting input to the DWI forming sequence.

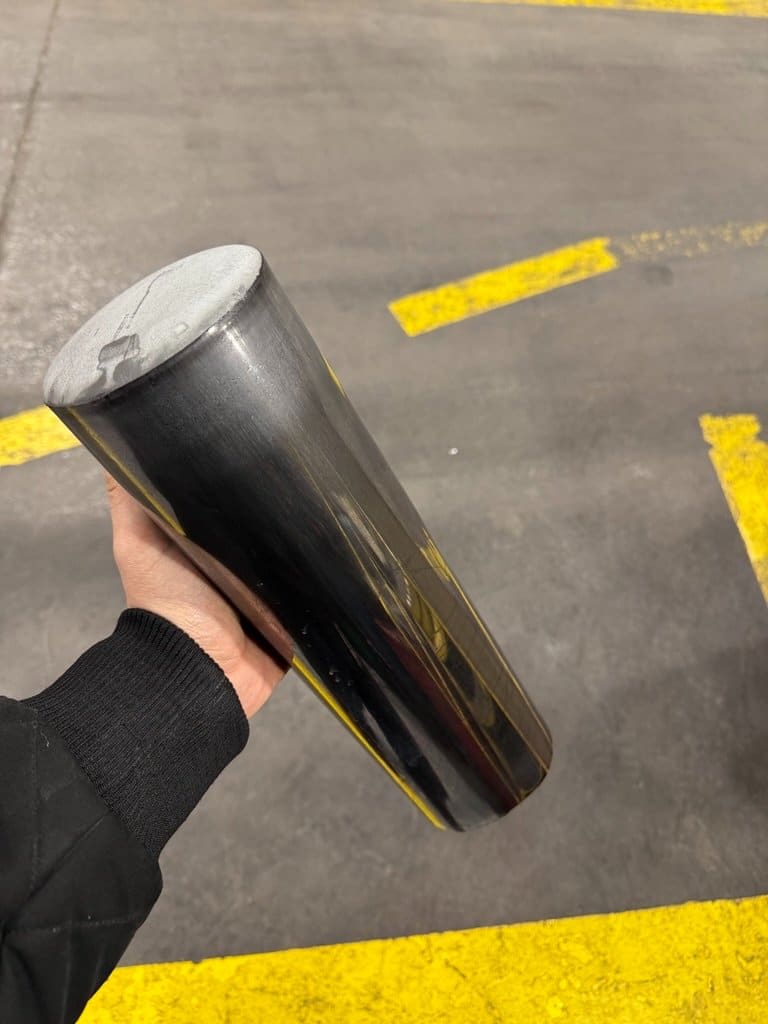

Finished DWI Shell
Drawn-and-ironed steel cylinder — smooth ironed exterior wall, closed dome base, open end ready for trimming and necking downstream.

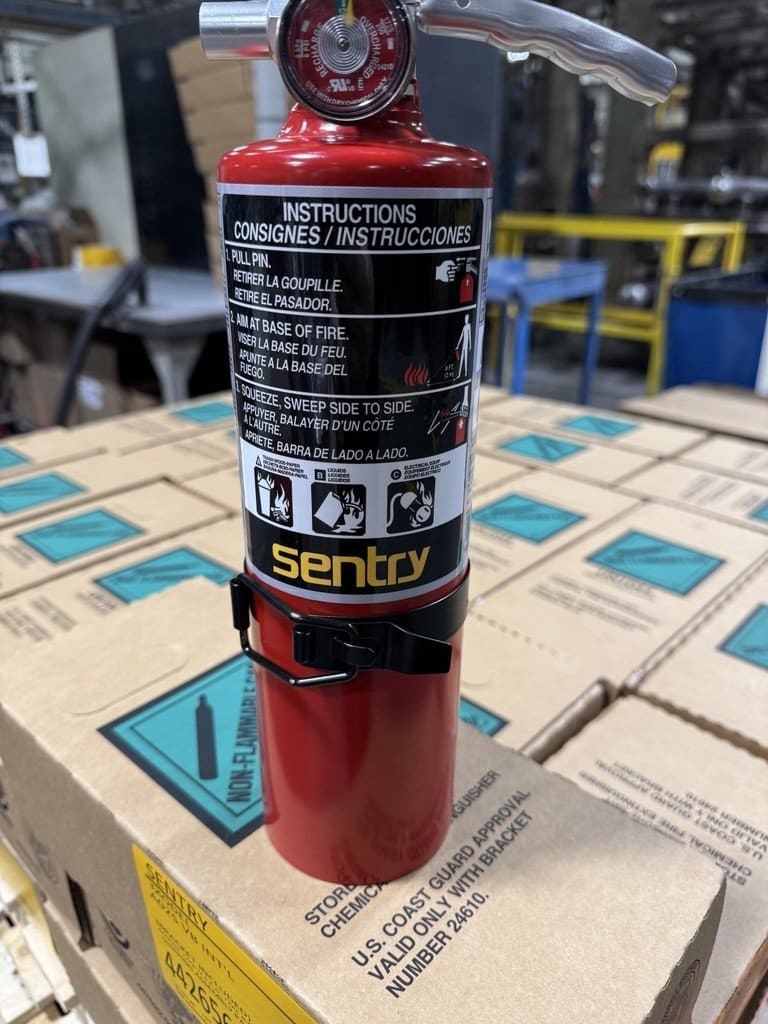

End Product Context
Sentry-brand fire extinguisher — US Coast Guard and UL approved. The DWI shell forms the cylinder body of this class of product.
Forming Simulation
Preliminary FEA — Process Validated Before Steel Is Cut
Luckee conducted preliminary forming simulations to establish process feasibility and give the tooling partner a validated baseline to design from. The simulation confirms that a four-ironing-pass sequence produces a stable, converging wall thickness profile with no predicted fracture or instability under the assumed blank material and process parameters.

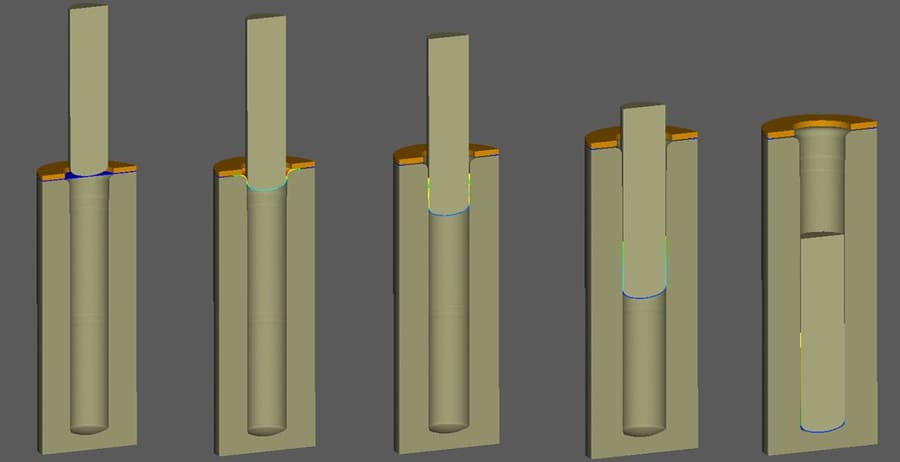

Simulation Sequence
Five cross-sectional frames showing the blank progressing from initial draw through successive ironing stages. FLD colour mapping active — no fracture or buckling instability predicted in any stage.

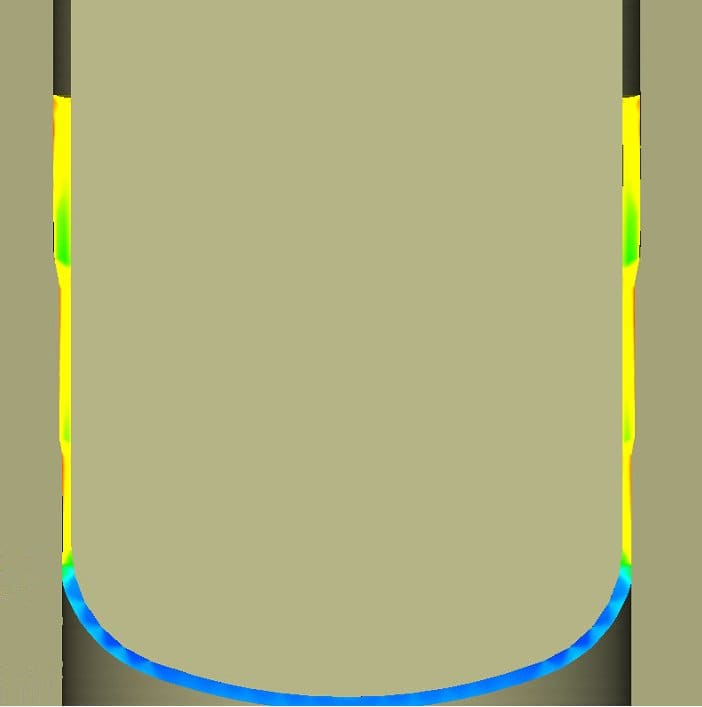

Cross-Section Strain Map
Wall thickness / strain distribution at the dome base radius. Highest concentration at ironing contact zones (yellow-red); dome base (blue) within acceptable range.
Wall Thickness Distribution
3D map showing the thickness gradient from dome base (blue, thicker) to open end (yellow). Confirms the four-pass sequence produces a stable thinning profile.

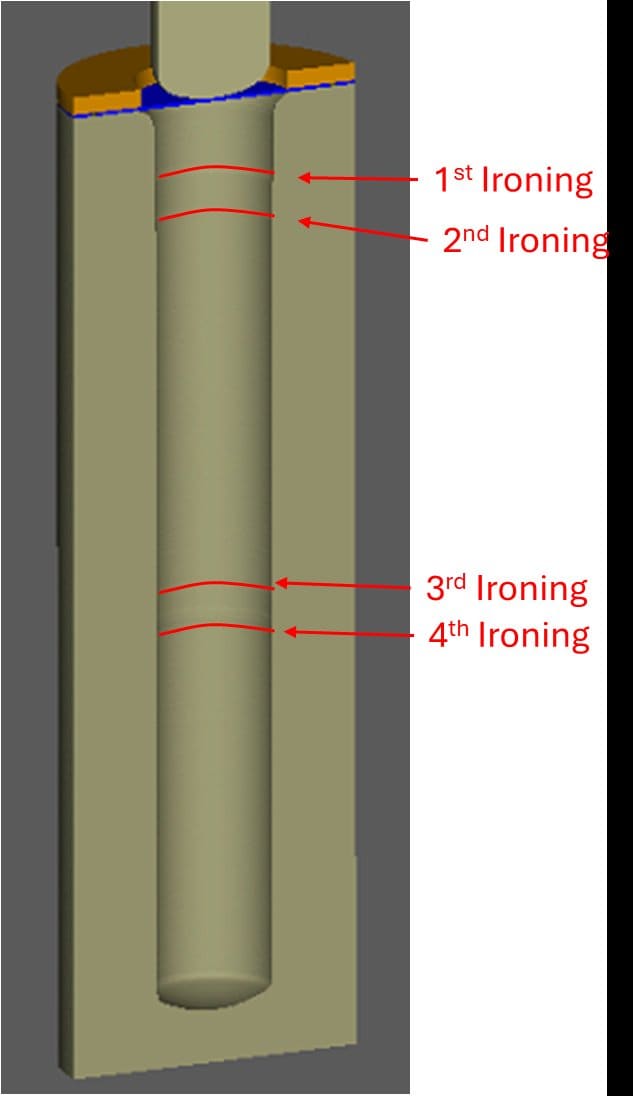

Ironing Stage Diagram
1st through 4th ironing ring contact positions annotated on the shell cross-section. Used to communicate the process sequence to the tooling partner during design briefing.
The supplier's engineering team demonstrated direct experience with DWI tooling for cylindrical pressure vessels. Reference projects reviewed during the audit included ironing die sets for aerosol cans, CO₂ cartridges, and LPG cylinder components — all geometrically analogous to fire extinguisher shells. CAD capability (SolidWorks and CATIA) was confirmed on workstations in the design office. Tooling drawings reviewed were dimensioned to a standard consistent with Macrodyne's engineering requirements.
The engineering team demonstrated AutoForm R10 capability — the industry standard for sheet metal forming feasibility analysis. Reference simulation outputs were reviewed on-screen and compared against Luckee's preliminary simulation basis. The team correctly interpreted Forming Limit Diagram (FLD) outputs, wall thickness distribution maps, and strain gradient plots — indicating genuine simulation literacy rather than superficial software access. A minor difference in assumed friction model (Coulomb vs. combined) was noted for alignment during the detailed design phase.
Die Machining Precision — Ironing Ring Bore at ±0.005mm
Verified
The precision machining workshop included four CNC lathes, two cylindrical OD/ID grinders, and one wire EDM unit. Ironing ring bore tolerances on reference tooling were measured with an air gauge and confirmed at ±0.005mm — adequate for the clearance precision required in DWI ironing ring sets. Punch-to-ring clearance in DWI tooling is typically 100–110% of the target wall thickness; maintaining this consistently across a four-ring set requires exactly this level of bore control.
Die Steel & Carbide Ring Specification — Appropriate for Application
Verified
Ironing rings were specified in tungsten carbide (WC-Co grade) — the industry standard for DWI ironing rings in steel cylinder production due to extreme contact pressure and abrasion conditions in the ironing zone. Draw die inserts were in Cr12MoV (Chinese equivalent to AISI D2 tool steel) — appropriate for the draw and redraw stages. Punch material was specified as H13 hot-work tool steel with a PVD TiCN coating — a well-regarded combination for DWI punch wear resistance. No anomalies in material specification.
The supplier presented a structured trial tooling programme: (1) design review and simulation correlation, (2) first-off tooling manufacture, (3) press trial with production-spec blank material, (4) dimensional and wall thickness measurement on first-article shells, (5) tooling adjustment and re-trial. Luckee recommended adding an explicit hold point after Stage 3 for Macrodyne engineering review of first-article results before any tooling adjustment is approved.
Programme Management — Bilingual Communication Recommended
Minor Improvement Noted
The programme manager assigned to the Macrodyne project was technically competent and responsive throughout the audit visit. However, the supplier's standard project reporting format — milestone tracking and open issues log — was maintained in Chinese only. Luckee recommended establishing a bilingual project communication protocol: weekly milestone updates in English and drawing revisions issued with English-language revision clouds, to ensure Macrodyne's engineering team can track progress without translation dependency.
Audit Verdict
Tooling Partner Approved for Macrodyne's DWI Shell Forming Programme
No critical findings were recorded. The supplier demonstrated genuine DWI tooling design and manufacture capability — confirmed through engineering office review, simulation competency assessment, precision machining inspection, and die steel specification review. Reference project experience in analogous cylindrical pressure vessel tooling provides relevant precedent for the fire extinguisher shell programme.
One minor recommendation was made regarding bilingual project communication. Macrodyne was advised to proceed to a formal tooling design agreement, with a structured first-article trial programme and an explicit engineering hold point prior to any tooling adjustment.
Approved
A
DWI Tooling Design Capability
A−
Forming Simulation (AutoForm)
A
Die Machining Precision
A
Die Steel & Carbide Spec
B+
Programme Management
